The ShorePort Pipe Bracket Large combines a heavy-duty pipe guide with a 21-inch Poly connector for ShorePort anchoring and connection layouts. The bracket guides a commonly used 2-inch Schedule 40 steel pipe while the connector locks the assembly into the molded ShorePort channels. This allows the port to move vertically with changing water levels while the pipe system helps control unwanted side-to-side movement.
What This Large Pipe Bracket Adds
Heavy-Duty Pipe Guide
Top and bottom wear plates create a guided opening around the anchoring pipe and help protect the molded bracket during vertical movement.
21-Inch ShorePort Connector
The supplied top and bottom connector pieces lock into the ShorePort channels to hold the pipe guide in the planned position.
Water-Level Movement
The ShorePort can rise and fall along the pipe while the anchoring layout provides lateral restraint.
Color-Matched Options
Choose Gray Part Number 1029310 or Tan Part Number 1022952 to coordinate with the ShorePort installation.
Is This the Correct ShorePort Pipe Bracket?
Use This Bracket For
Front or Side Pipe-Guide Positions
- A ShorePort or compatible PolyDock connection that calls for a large pipe bracket with connector.
- Anchoring layouts built around 2-inch Schedule 40 steel pipe.
- Rougher-water, multi-port or fixed-dock systems where the full ShoreMaster layout specifies pipe guidance.
Choose Different Hardware For
Rear Position or Flexible Floating-Dock Mounts
- The designated rear ShorePort channels; use the ShorePort Rear Pipe Bracket.
- A calm-water front mount that uses the paired Flexi-Hinge.
- A complete anchoring system when pipe, dock stand-offs or additional brackets have not yet been selected.

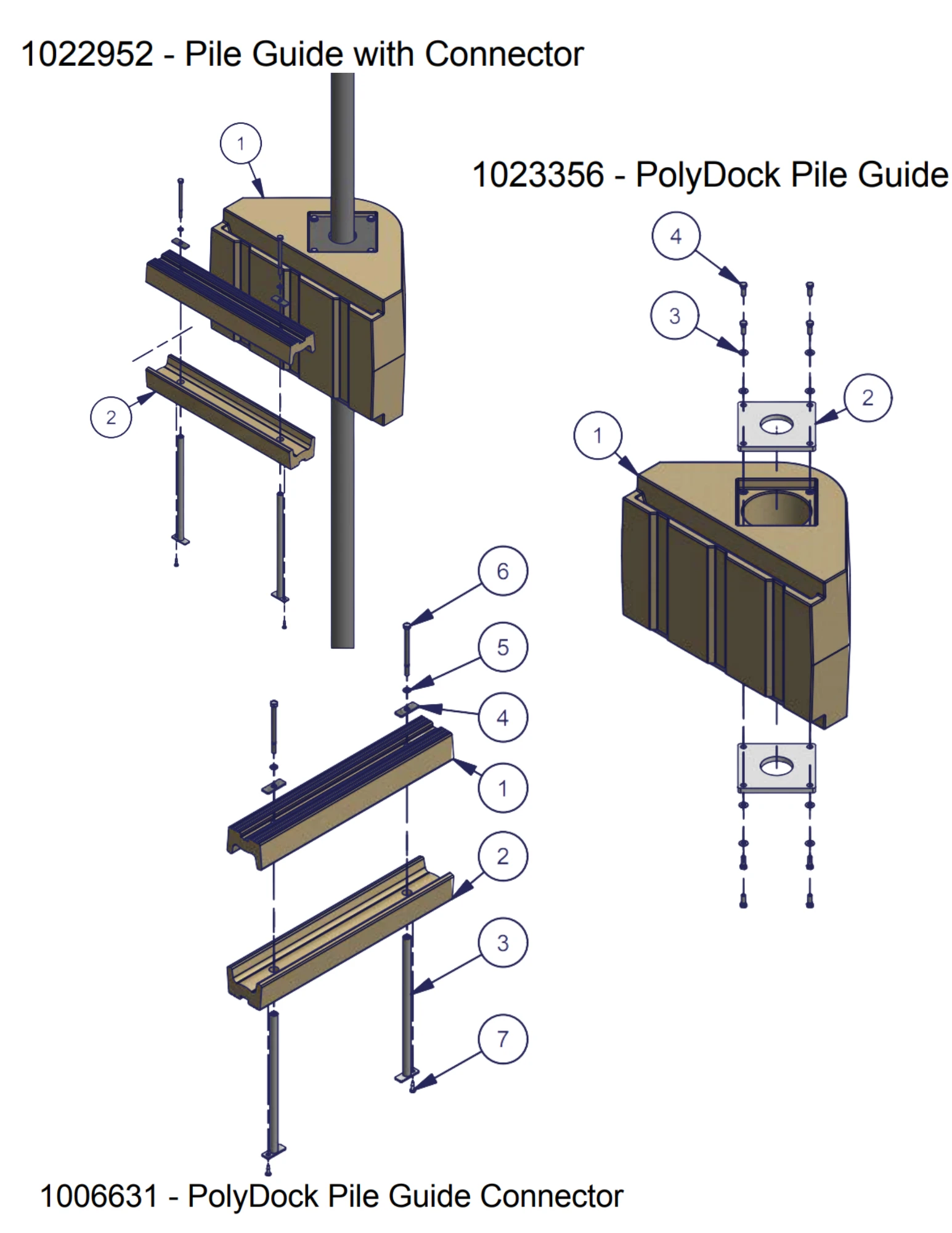

What’s Included
- One large ShorePort / PolyDock pipe-guide bracket
- Top and bottom wear plates for the pipe opening
- One 21-inch Poly connector pair with connecting rods
- Required assembly hardware
- Gray Part Number 1029310 or Tan Part Number 1022952
Not Included
- ShorePort PWC port
- 2-inch Schedule 40 steel anchoring pipe
- Rear ShorePort pipe bracket
- Dock stand-off connection
- Auger tip, installation tools or labor
Use It as One Part of the Approved Anchorage Layout
One large pipe bracket does not independently anchor a ShorePort. The correct system may also require a rear pipe bracket, additional large brackets, stand-off plates and multiple pipes depending on the dock orientation and site conditions.
The wear-plate opening may not pass every auger-style pipe tip. Review the installation sequence before driving or positioning the pipe so the bracket can be placed correctly.
Large Pipe Bracket or Rear Pipe Bracket?
Choose the large bracket for the front or side connection position specified in the ShorePort anchoring plan; it includes the longer Poly connector.
Choose the rear bracket only for the molded rear attachment channels. Many pipe-guided layouts use both bracket styles together.
Frequently Asked Questions
Does one order include a pair of large pipe brackets?
No. One order provides one complete large pipe-guide bracket and one 21-inch connector assembly in the selected color.
What pipe size is this bracket designed around?
The standard ShorePort layouts use 2-inch Schedule 40 steel pipe, which has an outside diameter of approximately 2-3/8 inches. Pipe is sold separately.
Can I use this bracket in the rear channels?
Use the dedicated ShorePort Rear Pipe Bracket for the rear attachment position.
Does it include the stand-off bracket that mounts to the dock?
No. When the selected layout requires a dock-side stand-off, order the ShorePort Stand Off Connection separately.
Which color should I select?
Select Gray for a Gray ShorePort or Tan for a Tan ShorePort so the connector and pipe-guide components coordinate with the port.
Need Help Counting ShorePort Pipe Brackets?
Share the number of ports, dock type, orientation, water depth and wave exposure. We can help map the large, rear and stand-off components called for by the layout.
