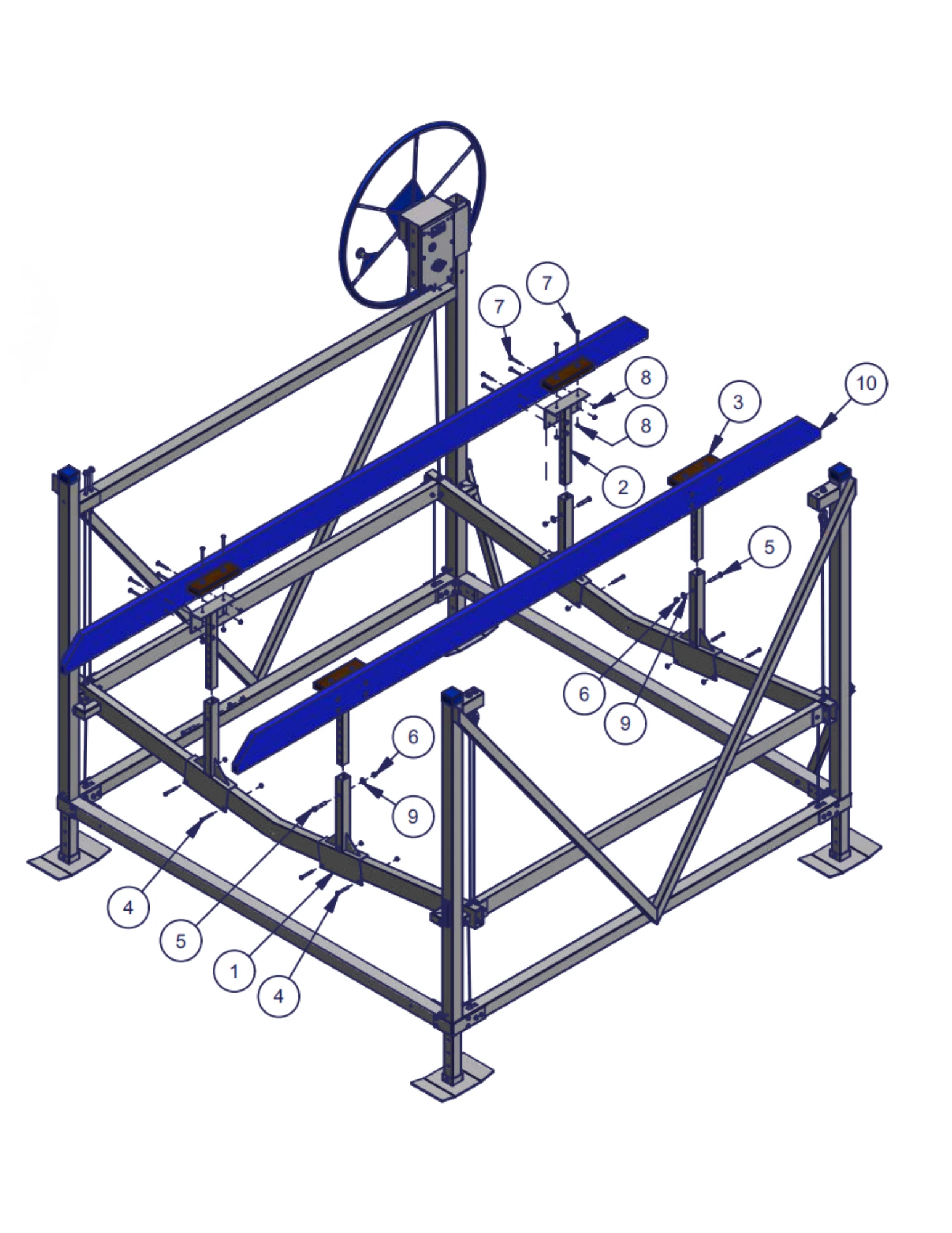

The ShoreMaster Pontoon Rail Kit provides the adjustable bracket assemblies and hardware used to build two long support rails beneath a pontoon. Four lower brackets mount to the front and rear lift rack beams, while four upper brackets set the bunk height. Customer-supplied 2 x 8 rails and short 2 x 4 support blocks complete the system, allowing the rail spacing and height to be tailored to the pontoon tube layout.
Why Choose a Pontoon Rail System?
Long, Continuous Support
Two full-length rails distribute the boat’s weight along the pontoon tubes rather than at only a few contact points.
Adjustable Height
Upper brackets can be set to the appropriate elevation for the pontoon and lift geometry.
Adjustable Tube Spacing
Move the front and rear bracket pairs across the rack to align the rails with the pontoon tubes.
Rack-Specific Options
Select the straight-rack or V/bent-rack version so the lower bracket geometry matches the lift.
Choose the Correct Rack Version
Straight Rack
Part Number 1007009
- For compatible lift racks with straight front and rear beams.
- Includes four straight-rack lower brackets, four upper brackets and the required mounting hardware.
- Use the straight-rack installation diagram for bracket orientation and spacing.
V / Bent Rack
Part Number 1007007
- For compatible lifts with sloped, bent or V-style rack beams.
- Includes four rack-specific lower brackets, four upper brackets and mounting hardware.
- Do not substitute the straight-rack brackets on a V-rack application.
What’s Included
- Four rack-specific lower pontoon-rail brackets
- Four adjustable upper pontoon-rail brackets
- Rack, height-adjustment and wood-mounting hardware
- Selected part number: 1007009 straight rack or 1007007 V/bent rack
Not Included
- Two full-length 2 x 8 wood rails, typically 14 feet
- Four 2 x 4 x 12-inch support blocks
- Carpet or another approved protective bunk covering
- Boat lift or center-tube support for some tritoon applications
The Wood Rails Are Not Included
The bracket kit requires customer-supplied wood to create the finished rail system. The ShoreMaster instructions specify two full-length 2 x 8 rails and four short 2 x 4 support blocks for the standard layout.
Use straight, sound material; protect the contact surface; and countersink all carriage bolts so exposed hardware cannot damage the pontoon.
Pontoon or Tritoon?
Two-Tube Pontoon
Two Adjustable Full-Length Rails
- Align one rail beneath each outside tube.
- Set front and rear brackets to the same spacing and height.
- Confirm the boat is balanced front-to-back on the lift before full operation.
Three-Tube Pontoon
Verify Center-Tube Support
- Some tritoon layouts require a separate center support system in addition to the two outside rails.
- Compare the Tri-Toon Center Cradle only after confirming it matches the lift model.
- Never assume the outer rails alone provide the support required for every tritoon hull.
Installation Guides
Leave the rack brackets slightly loose while setting the rail width and height, then tighten all hardware only after the front and rear supports are aligned.
After the first careful loading, check rail contact, boat balance, lift level and hardware tightness before regular use.
Frequently Asked Questions
What is included in the Pontoon Rail Kit?
The kit includes four lower rack-specific brackets, four adjustable upper brackets and the mounting hardware. The wood rails, short support blocks and protective covering are sold separately.
What wood is required?
The standard instructions call for two full-length 2 x 8 rails, typically 14 feet long, plus four 2 x 4 x 12-inch support blocks. Verify the required length and material for the specific lift and boat.
How do I choose straight rack or V/bent rack?
Inspect the front and rear lift rack beams where the lower brackets mount. Select 1007009 for a compatible straight rack and 1007007 for the compatible V/bent-rack geometry.
Can the rail spacing be adjusted?
Yes. The lower brackets can be positioned across the rack before final tightening, and the upper brackets allow height adjustment. Front and rear pairs must remain aligned.
Does the rail kit work for every tritoon?
Not by itself in every application. The outside rails support the outside tubes, but some tritoons require a separate center cradle. Confirm the boat, lift capacity and center-tube support requirements before installation.
Need Help Choosing Rails, Cradles or the Rack Version?
Share the lift model, rack photos, pontoon tube spacing and loaded boat weight. We can help determine the correct support system before you order.
