Product Description

Part Number: 1006629 (requires 2" pipe not included)

Product Description: Anchor your dock or ShorePort to a seawall, deck, post or other abutment on shore. Perfect for light duty, calm water installations. A stiff arm is a great choice for locations where augering into the lake bottom, river bed, or seafloor is restricted or prohibited. Galvanized pipe sold separately.

Included in the Box:

1 x 1000778 MH Box - Motor Stop 13.625 X 5.125 X 23.125 - FOL 32C
1 x 1003846 Wdmt Light Duty Stiff Arm Poly Dock
1 x 1004503 Bolt Bag Poly Dock Light Duty Stiff Arm
2 x 1004512 Poly Connector Rod Long 13-7/8" 316 Composite with Hardware (each)
1 x 1004769 Prt 12.0 - Poly Dock Accessory Connector Bottom
1 x 1004795 Light Duty Stiff Arm Shore End Channel

Installation Instructions: Click Here

Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702

Easy Returns. Manage your returns online.

REPLACEMENT PARTS

Shopping for replacement parts?

Use the diagram and parts list below to find replacement parts for your PolyDock Light Duty Stiff Arm. Select the quantities you need, then add all available parts to your cart at once.

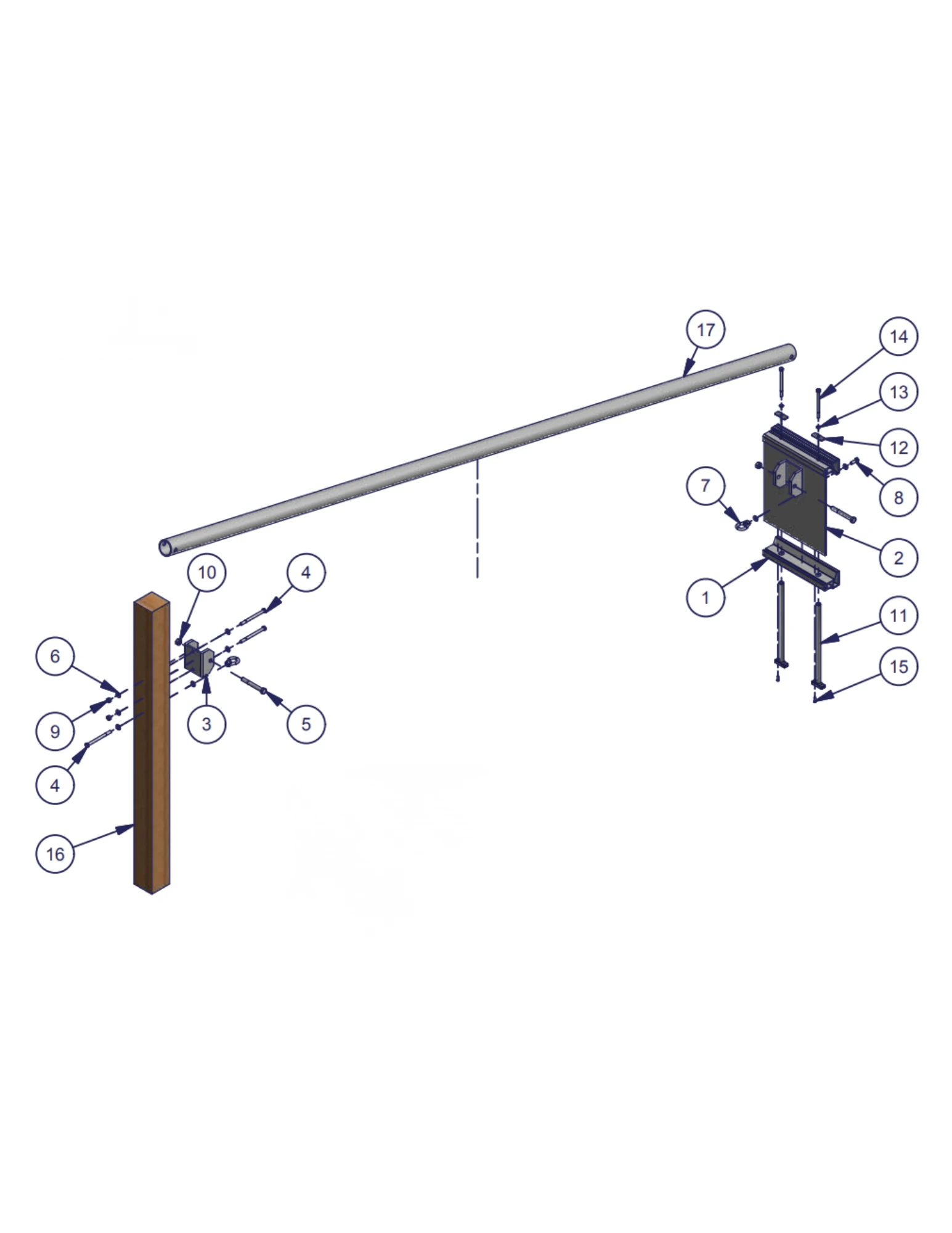

Parts Diagram

Match the numbered callouts to the parts list.

Replacement Parts

Enter the quantity you would like to order.

Item	Part #	Description	Qty Used	Qty to Order
1	1004769	Dock Poly 12" Accessory Connector Bottom	1	Contact Us
2	1003846	Light Duty Stiff Arm Weldment	1	Contact Us
3	1004795	Light Duty Stiff Arm Shore End Channel	1	Contact Us
—	1004503	BOLT BAG POLY DOCK LIGHT DUTY STIFF ARM	1	Contact Us
4	1002441	Bolt Hex 3/8-16 x 4.5 SS 304	3
5	1002384	Bolt Hex 1/2-13 X 4.0	2	Contact Us
6	1002599	Washer Flat 3/8 SS	8
7	1002095	Nut Hex 3/8-16 Eye Galv	2
8	1002419	Bolt Hex 3/8-16 x 1.0 SS 304	1
9	1001805	Nut Nyloc 3/8-16 Brass	2	Contact Us
10	1001795	Nut Nyloc 1/2-13 Brass	2	Contact Us
—	1004512	Poly Connector Rod 13.875 with hardware (composite)	2	Contact Us
11	1007918	Poly Connector Rod 13.875 Composite	1
12	1001026	Washer Rectangular SS 1/8 x 2 x 3/4	1
13	1002606	Washer Lock 5/16 SS	1
14	1001025	Bolt Hex 5/16-18 x 4.5 Full Thread SS 304	1
15	1002566	Screw Oval #12 x 1.0 SS	1
16	—	Wood, Metal or Concrete Post (sold separate)	1	Sold Separately
17	—	2" SCH 40 Pipe (sold separate)	1	Sold Separately
