PolyDock Heavy Duty Stiff Arm

$1,366.00

No reviews yet Write a Review

SKU:: 1006626

Ships To Most US States WA, OR, and ME Excluded.
30 Day Return Window Guaranteed on all items
Safe Payments Trusted SSL Protection
Amazing Selection We carry everything you'll need

Product Description

Part Numbers: 1006626

Product Description: Anchor your dock or ShorePort to a seawall, deck, post or other abutment on shore. Galvanized pipe sold separately. Perfect for heavy duty, commercial, marina and municipal installations. A stiff arm is a great choice for locations where augering into the lake bottom, river bed, or seafloor is restricted or prohibited. Galvanized pipe sold separately.

Installation Instructions: Click Here

Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702

Easy Returns. Manage your returns online.

REPLACEMENT PARTS

Shopping for replacement parts?

Use the diagram and parts list below to find replacement parts for your PolyDock Heavy Duty Stiff Arm. Select the quantities you need, then add all available parts to your cart at once.

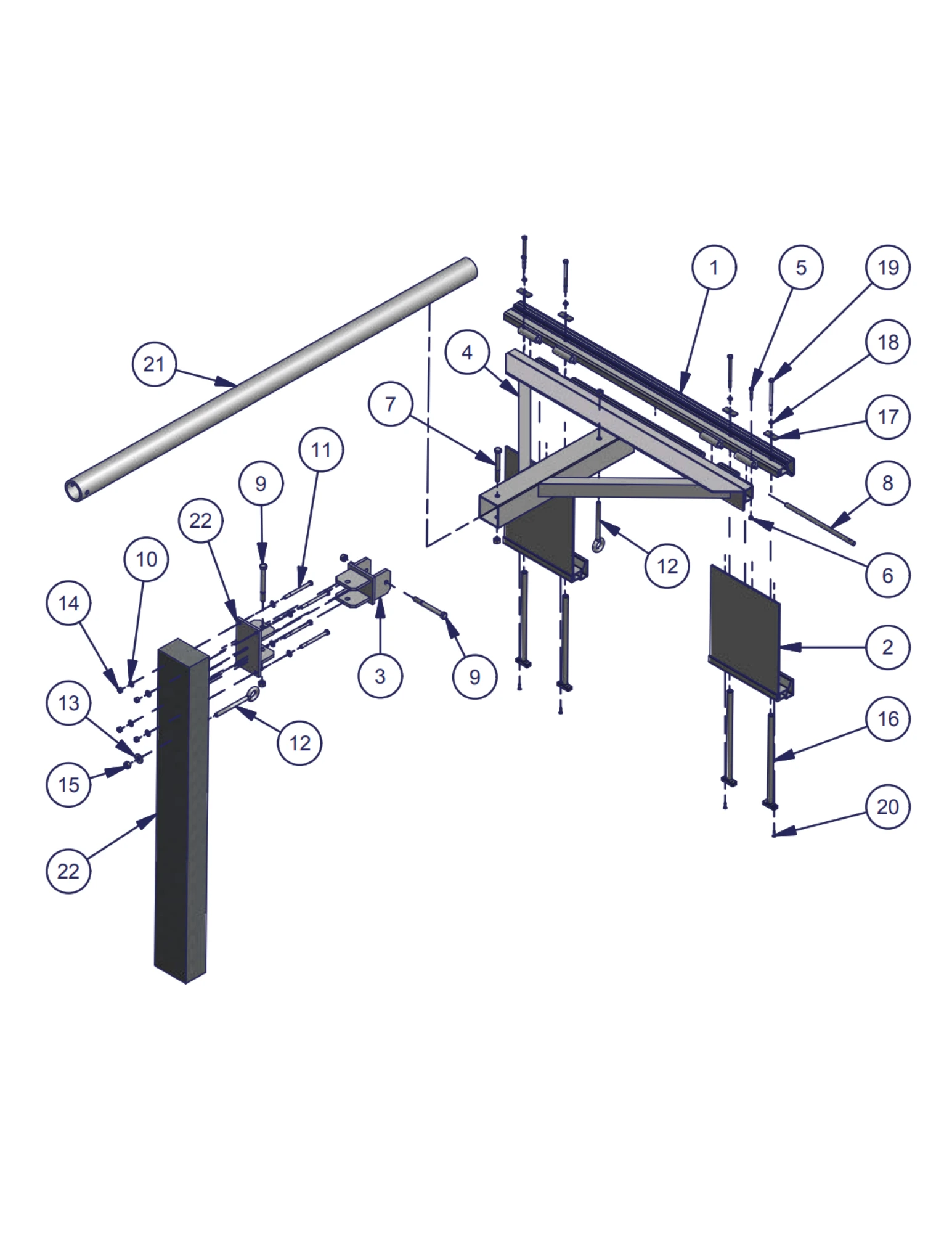

Parts Diagram

Match the numbered callouts to the parts list.

Replacement Parts

Enter the quantity you would like to order.

Item	Part #	Description	Qty Used	Qty to Order
1	1003848	HD Stiff Arm Poly Dock Hinge-A	1	Contact Us
2	1003849	HD Stiff Arm Bottom Connector Weldment	2	Contact Us
3	1001100	HD Stiff Arm Knuckle	1	Contact Us
4	1003847	HD Stiff-Arm A-Frame Weldment	1	Contact Us
—	1004504	Bolt Bag HD Stiff Arm	1	Contact Us
5	1014210	Bolt Hex 1/4-20 x 1.75 SS 304	2
6	1001798	Nut Nyloc 1/4-20 Brass	2	Contact Us
7	1002385	Bolt Hex 1/2-13 x 4.5 SS 304	1
8	1021290	Pin 12.0 W/ Hole - QC Hinge	2	Contact Us
9	1002388	Bolt Hex 1/2-13 x 5.0 SS 304	2
10	1002599	Washer Flat 3/8 SS	8
11	1002441	Bolt Hex 3/8-16 x 4.5 SS 304	4
12	1000438	Bolt Eye 1/2-13 x 6.0 Welded SS 304	2	Contact Us
13	1002565	Washer Flat 1/2 SS	1
14	1001805	Nut Nyloc 3/8-16 Brass	4	Contact Us
15	1001795	Nut Nyloc 1/2-13 Brass	5	Contact Us
—	1004512	Poly Connector Rod with hardware (composite)	4	Contact Us
16	1007918	Poly Connector Rod 13.875 Composite	1
17	1001026	Washer Rectangular SS 1/8 x 2 x 3/4	1
18	1002606	Washer Lock 5/16 SS	1
19	1001025	Bolt Hex 5/16-18 x 4.5 Full Thread SS 304	1
20	1002566	Screw Oval #12 x 1.0 SS	1
21	—	2.5" SCH 80 Pipe (2-7/8" OD) (Sold separate)	1	Sold Separately
22	—	Post or Sea Wall (Customer provided)	1	Customer Provided
