Part Number: 1029033 - Gray, 1023002 - Tan

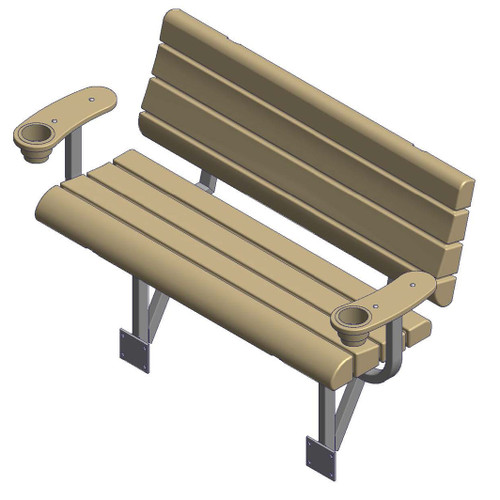

Product Description: ShoreMaster's Lakeview dock benches add comfort and style to your dock. For added comfort combine with Arm Rests.
Bolts directly onto dock.
Included in the Box:
1 x Lakeview Bench On-Deck Hardware
1 x Lakeview Rhino Bench Planks
Installation Instructions: Click Here
Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702
REPLACEMENT PARTS

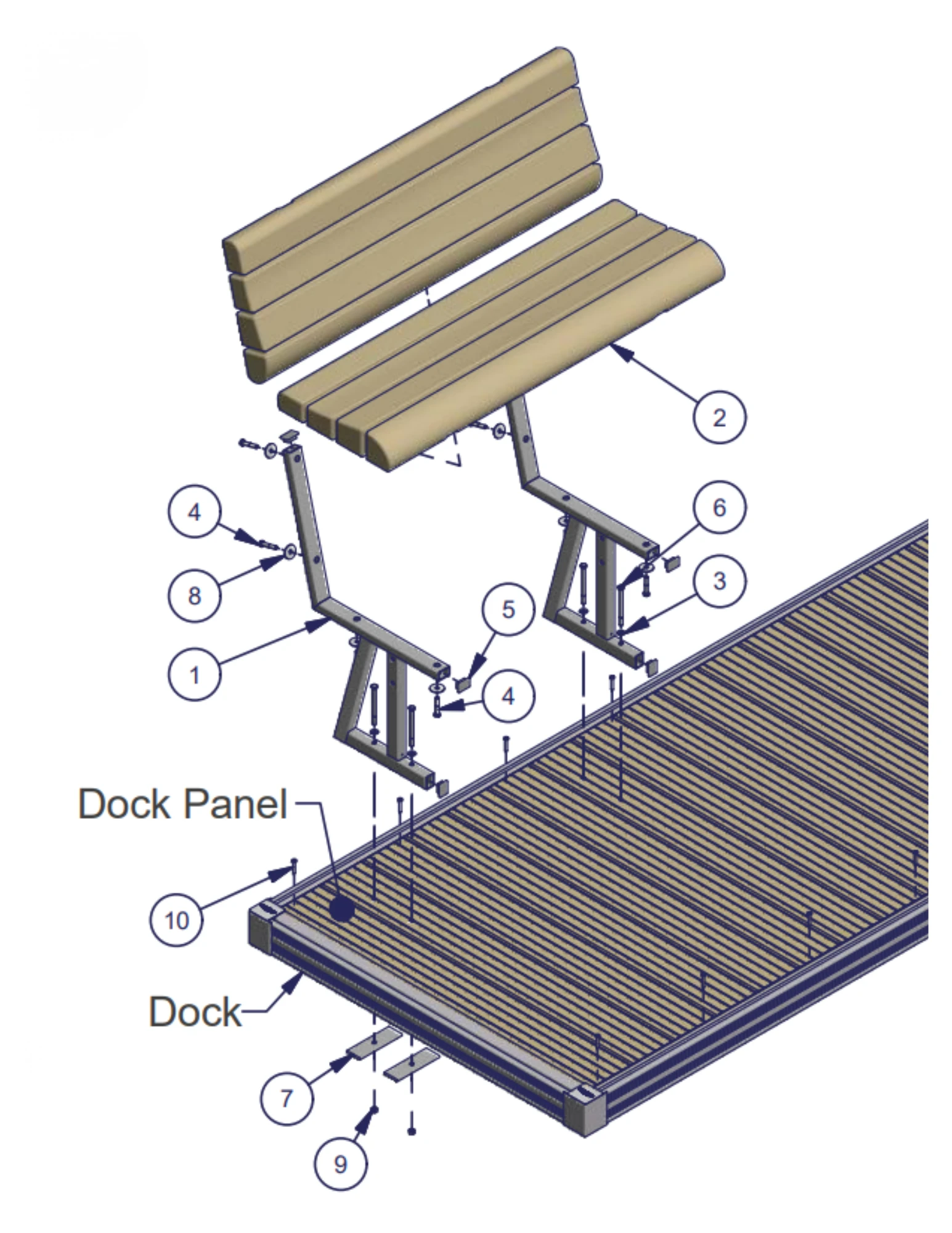

Use the diagram and parts list below to find replacement parts for your On-Deck Lakeview Bench. Select the quantities you need, then add all available parts to your cart at once.
Match the numbered callouts to the parts list.
Enter the quantity you would like to order.
| Item | Part # | Description | Qty Used | Qty to Order |
|---|---|---|---|---|
| 1 | 1013080 | Weldment Lakeview Bench Frame On-Deck | 2 | Contact Us |
| 2 | 1022999 | Prt Bench Plank Poly 3.5x16.35x48.0 Tan | 2 |
|
| 2 | 1029031 | Prt Bench Plank Poly 3.5x16.35x48.0 Gray | 2 |
|
| — | 1013084 | Bolt Bag Lakeview On-Deck Bench | 1 |
|
| 3 | 1002599 | Washer Flat 3/8 SS | 4 |
|
| 4 | 1002424 | Bolt Hex 3/8-16 x 2.0 SS 304 | 8 |
|
| 5 | 1000986 | Cap Press-In 1.125 x 1.625 Silver W/Logo | 6 |
|
| 6 | 1002442 | Bolt Hex 3/8-16 x 4.5 Full Thread SS 304 | 4 | Contact Us |
| 7 | 1004624 | Alum Plate 1/4" x 2" x 6" With 7/16" Hole | 4 |
|
| 8 | 1002601 | Washer Fender 3/8 x 1.5 SS | 8 | Contact Us |
| 9 | 1001805 | Nut Nyloc 3/8-16 Brass | 4 | Contact Us |
| 10 | 1002576 | Screw Pan Phil 1/4 x 1.75 T/A SS | 8 |
|
