Part Number: 1006658 - RS7, 1006660 - TS9
The Tow Hitch does NOT require additional InfinityTrack bracket.
Included in the Box:
1 x Part Number Vary - Wdmt Tow Hitch
1 x 1004501 Hardware Box - Tow Hitch
Installation Instructions: Click Here
Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702
REPLACEMENT PARTS

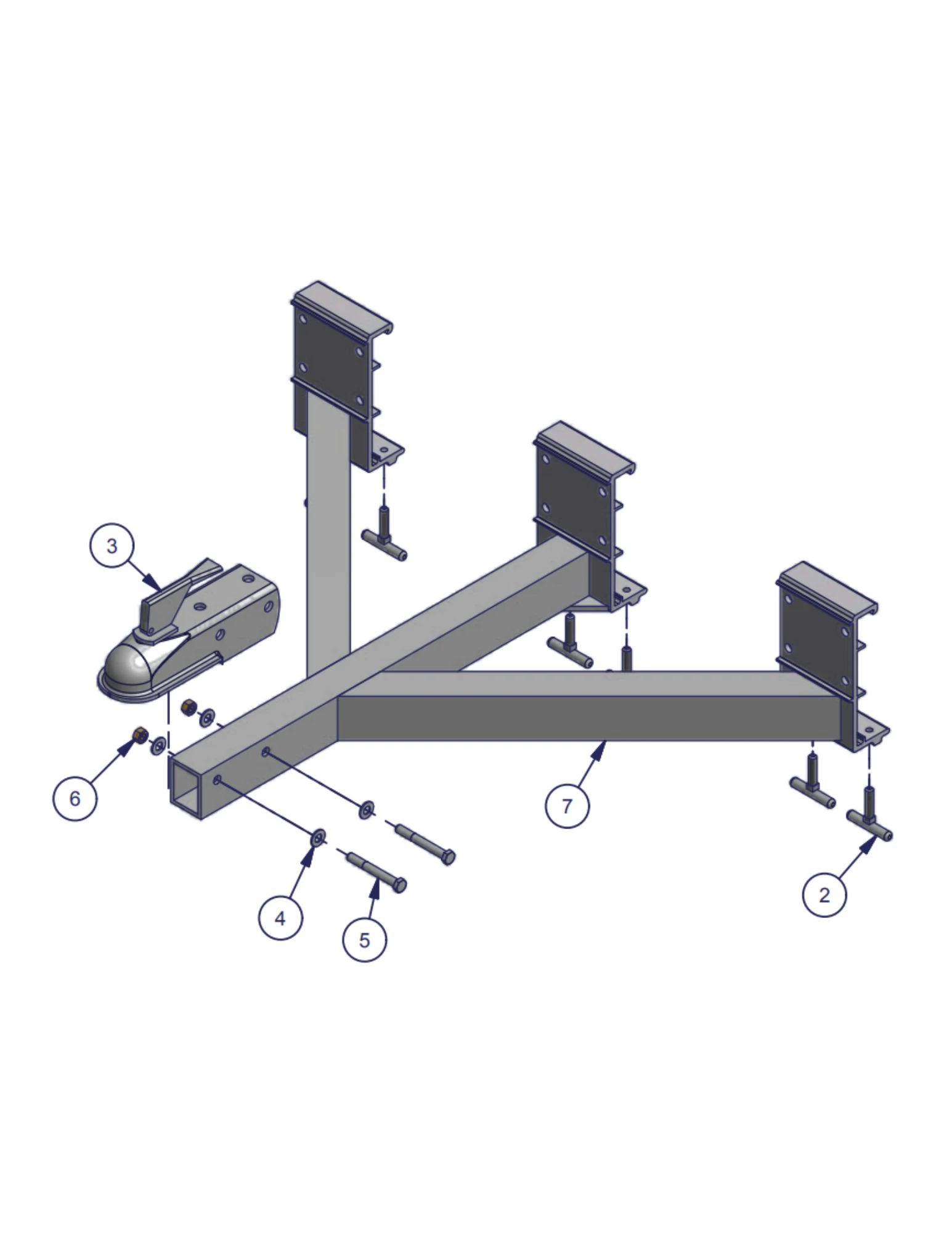

Use the diagram and parts list below to find replacement parts for your Tow Hitch. Select the quantities you need, then add all available parts to your cart at once.
Match the numbered callouts to the parts list.
Enter the quantity you would like to order.
| Item | Part # | Description | Qty Used | Qty to Order |
|---|---|---|---|---|
| 1 | 1004573 | Bolt Bag - Hitch | 1 | Contact Us |
| 2 | 1000876 | T Handle 3/8-16 x 1.5x2.5 w/ Cup Point | 6 | Contact Us |
| 3 | 1031565 | Coupler 2" For Tow Hitch | 1 | Contact Us |
| 4 | 1002599 | Washer Flat 3/8 SS | 4 |
|
| 5 | 1002432 | Bolt Hex 3/8-16 x 3.0 SS 304 | 2 |
|
| 6 | 1001803 | Nut Hex 3/8-16 Brass | 2 |
|
| 7 | 1003792 | Tow Hitch Weldment RS7 | 1 | Contact Us |
| 7 | 1003793 | Tow Hitch Weldment TS9 | 1 | Contact Us |
