Part Number: 1004282
Product Description: Solar Panel Canopy Mounting Bracket
Included in the Box:
1 x 1003106 Bent Tube Solar Canopy Frame
1 x 1003748 Wdmt Bracket Solar Charger Canopy
1 x 1004514 Bolt Bag Solar Charger Canopy Mount 10W Power Up
1 x 1019823 Wdmt Solar Panel Mount - Clean Energy 10 Watt
Installation Instructions: Click Here
Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702
Worked perfectly
Shopping for replacement parts? Use the diagram and parts list below to find replacement parts for your Solar Charger Canopy Mounting Bracket. Select the quantities you need, then add all available parts to your cart at once.

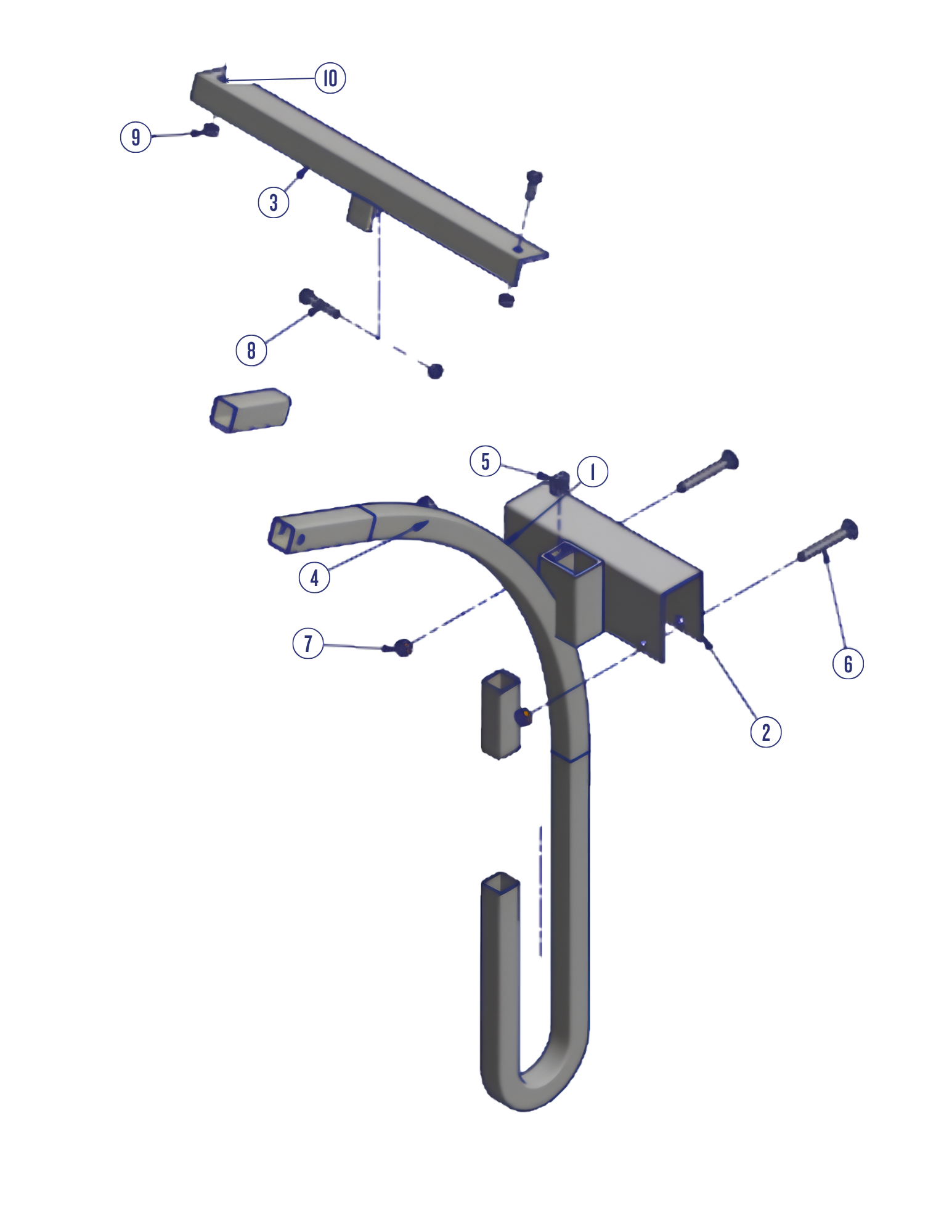

Use the item numbers in the diagram to identify the replacement part you need.
| Item | Part # | Description | Qty Used | Qty to Order |
|---|---|---|---|---|
| 1 | — | Solar Charger Canopy Bent Frame | 1 | Contact Us |
| — | 1004514 | Bolt Bag | 1 | Contact Us |
| 2 | 1002421 | Thumb Screw 3/8 X 1 1/2 | 1 |
|
| 3 | 1001970 | Carriage Bolt 5/16 X 2 1/2 | 1 |
|
| 4 | 1002421 | Thumb Screw 3/8 X 1 1/2 | 1 |
|
| 5 | 1002598 | Nut 3/8 Square | 1 | Contact Us |
| 6 | 1001970 | Carriage Bolt 5/16 X 2 1/2 | 2 |
|
| 7 | 1001807 | Nut 5/16 | 2 |
|
| 8 | 1002399 | Bolt Hex 1/4 X 1.5 | 1 | Contact Us |
| 9 | 1001798 | Nut Nyloc 1/4 | 3 | Contact Us |
| 10 | 1000557 | Bolt Hex 1/4 X .75 | 2 | Contact Us |
