Once I figured out the alignment on the existing bumper it worked just like it was supposed to!!!
It does indeed turn a vertical bumper into a horizontal one. But IMHO, this should be included with the vertical bumper, so you can choose how you want to mount it. This is just a small angle bracket with 4 holes in it.
REPLACEMENT PARTS

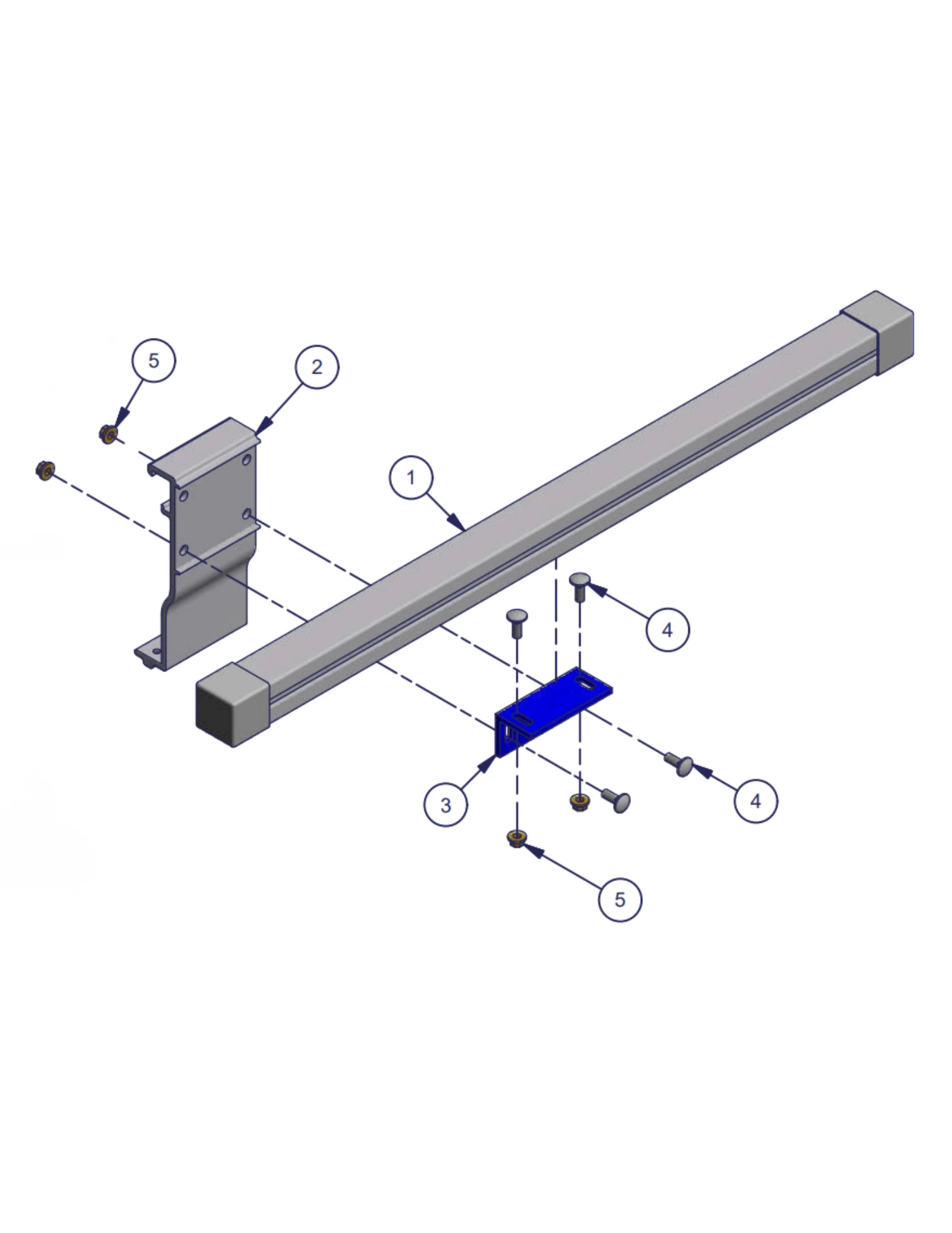

Use the diagram and parts list below to find replacement parts for your Horizontal Adapter for Vertical Dock Bumper. Select the quantities you need, then add all available parts to your cart at once.
Match the numbered callouts to the parts list.
Enter the quantity you would like to order.
| Item | Part # | Description | Qty Used | Qty to Order |
|---|---|---|---|---|
| 1 | 1003119 | Slider Leg 37.75" Roto Bumper (sold separately) | 1 |
|
| 2 | 1006730 | TS9 Accessory Connector (sold separately) | 1 |
|
| 2 | 1006706 | RS4 Accessory Connector (sold separately) | 1 |
|
| 2 | 1006708 | RS7 Accessory Connector (sold separately) | 1 |
|
| 2 | 1006608 | Poly Dock Accessory Connector (sold separately) | 1 |
|
| 3 | 1026200 | Horizontal Adaptor | 1 | Contact Us |
| 4 | 1001956 | Bolt Carriage 3/8-16 x 1.0 SS 304 (sold separately) | 4 |
|
| 5 | 1001802 | Nut Flange 3/8-16 Brass (sold separately) | 4 |
|
