Part Number: 1024401 - Battery Tray
Product Description: Battery tray mounts to upright of boat lift. Will handle up to a group 27 battery.
Installation Instructions: Click Here
Have more questions? Contact one of our many dealers or call our in-house experts - 888-298-9702
Replacement Parts

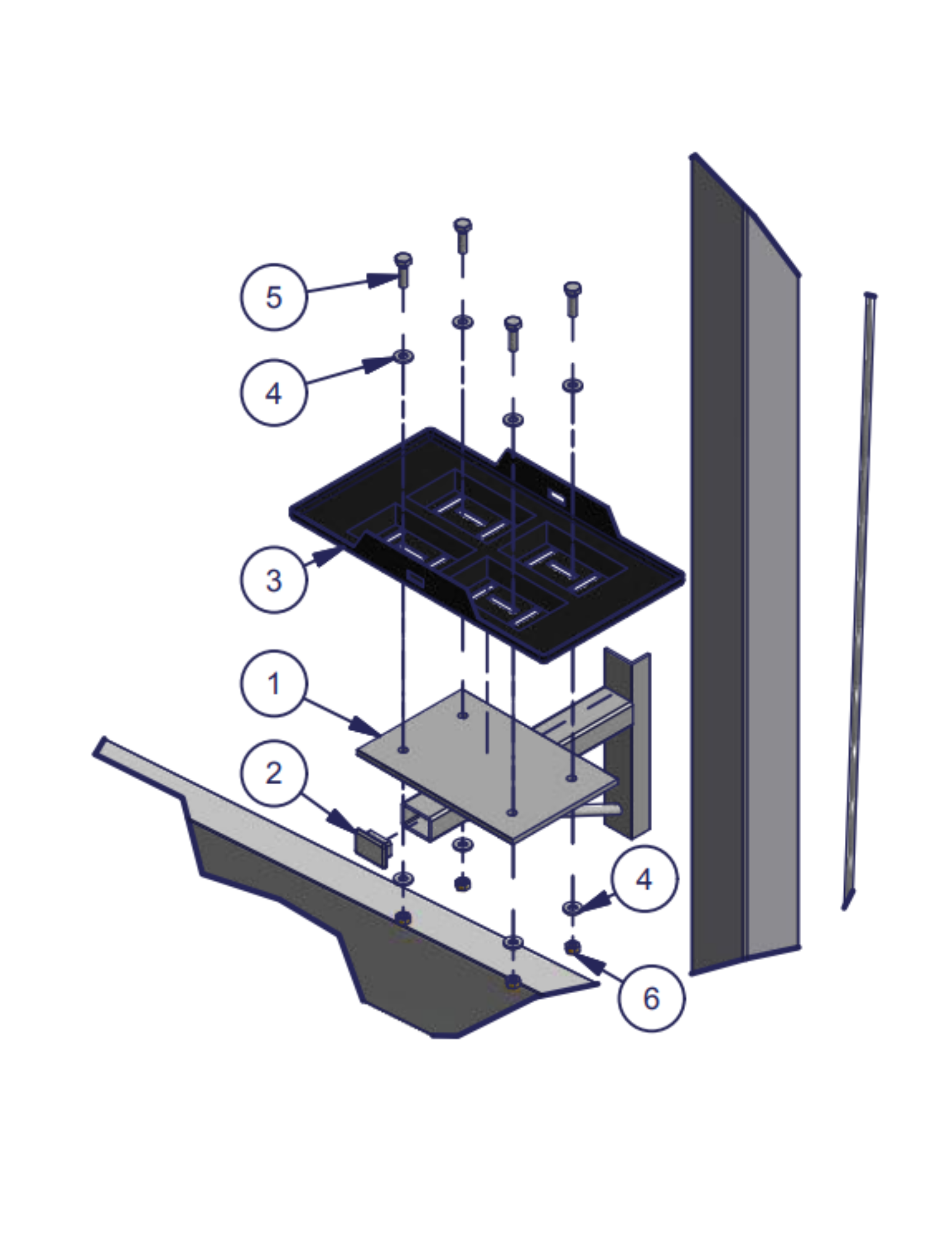

Use the diagram and parts list below to find replacement parts for your Battery Tray Kit - Lift Leg Mount. Select the quantities you need, then add all available parts to your cart at once.
Use the item numbers to identify the parts you need.
Select the quantity you need for each available part.
| Item | Part # | Description | Qty Used | Qty to Order |
|---|---|---|---|---|
| 1 | 1024400 | Wdmt - Lift Leg Battery Box Tray | 1 | Contact Us Not available online |
| — | 1024402 | Bolt Bag - Lift Leg Battery Box Tray | 1 | Contact Us Not available online |
| 2 | 1021908 | Cap Press-In 1.125x1.625 Silver No Logo | 1 | Contact Us Not available online |
| 3 | 1024393 | Battery Box Tray with Strap - 7.8125 x 14 | 1 | Contact Us Not available online |
| 4 | 1002608 | Washer Flat 5/16 SS | 8 | Contact Us Not available online |
| 5 | 1002453 | Bolt Hex 5/16-18 X 1.0 SS | 4 | Contact Us Not available online |
| 6 | 1001807 | Nut Hex 5/16-18 Brass | 4 |
|
| 7 | 1014218 | Screw Self-Drilling Hex Head 1/4 x 1 SS | 2 | Contact Us Not available online |
| 8 | 1014564 | Hose Clamp 72 Dia (not shown) | 2 |
|
